Product parameters:
Electrical Specifications | ||||||||||
Module Type | YH132M-485 | YH132M-490 | YH132M-495 | YH132M-500 | YH132M-505 | |||||
Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
Rated output (Pmp/Wp) | 485 | 364 | 490 | 368 | 495 | 372 | 500 | 376 | 505 | 376 |
Rated voltage (Vmp/V) | 38.7 | 34.5 | 38.9 | 34.7 | 39 | 34.8 | 39.2 | 35 | 39.4 | 35.2 |
Rated current (lmp/A) | 12.53 | 10.54 | 12.61 | 10.61 | 12.68 | 10.68 | 12.75 | 10.74 | 12.82 | 10.81 |
Open circuit voltage (Voc/V) | 46.8 | 41.6 | 47 | 41.7 | 47.2 | 41.9 | 47.3 | 42.1 | 47.5 | 42.2 |
Short circuit current (Isc/A) | 13.25 | 11.18 | 13.32 | 11.24 | 13.39 | 11.3 | 13.48 | 11.37 | 13.55 | 11.44 |
Module efficiency (%) | 20.44% | 20.64% | 20.85% | 21.06% | 21.27% | |||||
Power Tolerance (W) | 0~+5 | |||||||||
Electrical Specifications | |
Cell Type | MONO 182×91mm |
No. of Cells | 132 (6×22） |

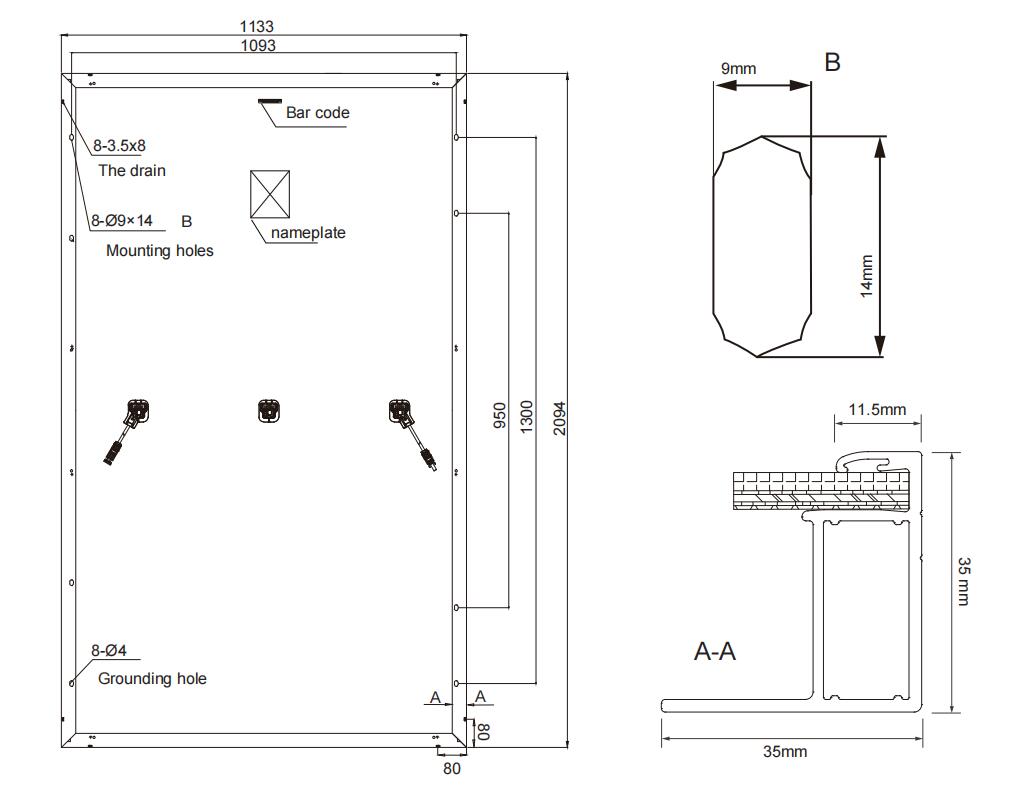

Dimension | 2094x1133x35mm |
Weight | 25kg |
Glass | 3.2mm, Low Iron Tempered Glass |
Frame | Anodized Aluminium Alloy |
Junction Box | IP68, 3 diodes |
Output Cables | 4mm², Length 300mm or customized |
Connector type | MC4 compatible |
Temperature Characteristics | |
NOCT Temperature | 44℃ ±2℃ |
Temperature Coefficient (Pmax) | -0.36%/℃ |
Temperature Coefficient (Voc) | -0.28%/℃ |
Temperature Coefficient (Isc) | 0.05%/℃ |
Maximum Ratings | |
Maximum system voltage (IEC) | 1500V DC （IEC） |
Snow / Wind | 5400Pa / 2400Pa |
Operating Temperature | -40℃ ~ +85℃ |
Maximum series fuse rating | 20A |
Packaging Configurations | |
Per Pallet | 31 pcs |
Per 20' GP | 155 pcs |
Per 40' HQ Container | 682 pcs |
Product introduction：
1.High light transmittance low iron tempered glass, through the use of excellent tempered glass and battery surface flocking technology, to achieve excellent performance in low light environment
2.More uniform current collection capacity to reduce the current and heat loss of the battery inside the module;
3.High efficiency, long service life, convenient installation, wind resistance, hail resistance and high conversion efficiency
4.Beautiful appearance, more suitable for installation
5.Anti aging EVA, excellent weather resistant back film
6.Anodized high quality aluminum alloy frame
7.25 year output power guarantee
